True Guide

Precision Products

True Guide

Passive implement guidance system that monitors and corrects the position of your implement by moving the tractor.

Control your implement with the Trimble® TrueGuide® implement guidance system, a passive guidance system that monitors and corrects the position of your implement with compensation from your tractor.

With TrueGuide, your implement’s position Is dependent on your tractor. When your implement drifts, TrueGuide signals your tractor’s Autopilot system to pull the implement on line — so you can operate with ease no matter the guidance path.

FEATURES:

  • Allows the implement get on line with movement from the tractor
  • Requires a GNSS antenna on your implement and Autopilot™ system and the TMX-2050® display in your tractor
  • Ideal for broadacre crop applications in which multi-pass repeatability is not required
  • Reduces uncontrolled drift of the implement by more than 50% over guiding the tractor alone
  • Minimizes draft and result in more consistent guess rows
    • Increase your precision with input placement
Data sheetDOWNLOAD
Previous
Next

Specialised solutions

Discover More Steering System Options.

True Tracker

Precision Products

True Tracker

Active implement guidance system that keeps your tractor and implement on the same guidance line.

Keep your implement and tractor on the same guidance line with the Trimble® TrueTracker™ implement steering system, an active implement guidance system that allows your implement to guide itself independently from your tractor.

TrueTracker uses your tractor’s Autopilot system to monitor your implement and signal it to follow the correct path during periods of drift. TrueTracker keeps you confident that your implement is on line all the time.

FEATURES:

  • Allows the implement to correct its position without input from the tractor
  • Utilizes terrain compensation technology for high accuracy on difficult terrain
  • Requires a GNSS antenna and NavController II or NavController III on your implement and Autopilot™ system and the TMX-2050® display in your tractor
  • Ideal for row crop and multiple-pass farming applications
  • Accurately steer your implement and tractor on a repeatable path
  • Operate in the most difficult terrain and variable soil conditions
  • Minimize draft and result in more consistent guess rows
  • Reduce crop damage and compaction
  • Improve seedbed and nutrient placement
Data sheetDOWNLOAD
Previous
Next

Specialised solutions

Discover More Steering System Options.

EZ-Steer Assisted Steering System

Precision Products

EZ-Steer Assisted Steering System

Assisted steering system providing portable, hands-free farming for more than 1200 vehicle makes and models. The Trimble® EZ-Steer® assisted steering system provides simple, portable, hands-free farming for more than 1200 vehicle models – old and new.

The EZ-Steer system turns the steering wheel for you by combining a friction wheel and a motor with guidance from any compatible Trimble display. It keeps your vehicle online for efficient, low-stress steering capabilities for your farming applications.

FEATURES:

  • Provides hands-free guidance for your many farm vehicle types
  • Integrates directly into the steering column for clear access to cab control
  • Allows for unrestricted manual steering when assisted steering is not engaged
  • Utilizes terrain compensation technology for high accuracy on difficult terrain
  • Ideal for both low-accuracy broadacre and high-accuracy row-crop farming applications
  • Complete field applications quickly and accurately
  • Reduce operator fatigue and increase safety
  • Operate day or night and in dusty or low visibility conditions
Data sheetDOWNLOAD

Specialised solutions

Discover More Steering System Options.

EZ-Pilot Assisted Steering System

Precision Products

EZ-Pilot Assisted Steering System

Assisted steering with integrated electric motor drive for high accuracy at an affordable price. The Trimble® EZ-Pilot® assisted steering system provides high-accuracy steering at an affordable price. When you are driving your vehicle, the EZ-Pilot system turns the wheel for you with a compact electric motor drive using guidance from Trimble displays to help keep you on line and improve your efficiency.

The versatile steering system is ideal for both low-accuracy broadacre farming applications as well as high-accuracy row crop applications.

FEATURES:

  • Provides hands-free guidance for your many farm vehicle types
  • Integrates directly into the steering column for clear access to cab control
  • Allows for unrestricted manual steering when assisted steering is not engaged
  • Utilizes terrain compensation technology for high accuracy on difficult terrain
  • Ideal for both low-accuracy broadacre and high-accuracy row-crop farming applications
  • Complete field applications quickly and accurately
  • Reduce operator fatigue and increase safety
  • Operate day or night and in dusty or low visibility conditions
Data sheetDOWNLOAD
Previous
Next

Specialised solutions

Discover More Steering System Options.

EZ-Pilot Pro Guidance System

Precision Products

EZ-Pilot Pro Guidance System

The EZ-Pilot® Pro guidance system offers high accuracy guidance across MFWD tractors, 4WDs, and combines. The added benefit of the EZ-Pilot Pro system is that vehicles are now able to be engaged in reverse to allow them to be lined for the next swath (max 15 seconds).

Adding this feature allows users to benefit from a high accuracy solution from the second the implement engages with the soil.

FEATURES:

  • High accuracy at an affordable price
  • Vehicles can be engaged in reverse for up to 15 seconds
  • Vehicles stay engaged while stopped
  • Reduced hardware makes transferring between vehicles even quicker
Data sheetDOWNLOAD
Previous
Next

Specialised solutions

Discover More Steering System Options.

Autopilot Motor Drive

Precision Products

Autopilot Motor Drive

Electric, hands-free, automated steering system with easy installation onto steering column, delivers highly-accurate, Autopilot-level steering. Trimble® Autopilot™ Motor Drive, controls tractors and harvesting machines without hydraulic components up to RTK accuracy

No matter your vehicle type or brand, the Trimble Autopilot Motor Drive system can be quickly installed from one vehicle to another and steers your vehicle on line for maximum precision.

FEATURES:

  • Sub-inch accuracy inertias from the NavController III
  • Slow speed and reverse operation
  • Eliminates the requirement for an AutoSenseTM or a steering angle sensor
  • Autopilot performance without the requirement for hose installation or the need for special tools
  • Simple installation similar to the EZ-Pilot system
  • Easy to transfer between vehicles
  • Available for a large, expanding range of vehicles

Specialised solutions

Discover More Steering System Options.

Autopilot Automated Steering

Precision Products

Autopilot Automated Steering

Automated, hands-free, steering system installs directly into the hydraulic system, delivers highest-accuracy steering in any field type. The Trimble Autopilot automated steering system automatically steers your vehicle on line with maximum precision.

When your vehicle gets offline, Autopilot signals it to adjust its position to follow the correct path, no matter the field pattern or terrain type — so you can focus on the job ahead of you.

FEATURES:

  • Trimble Autopilot provides automatic steering for your vehicle with one-inch repeatability
  • Integrates directly into your vehicle’s hydraulics for clear access to cab control
  • Utilizes terrain compensation technology for high accuracy on difficult terrain
  • Ideal for the most demanding row crop farming applications
  • Plugs in to many guidance-ready vehicles, minimizing the need for additional equipment
  • Complete field applications quickly and accurately
  • Reduce operator fatigue and increase safety
  • Operate day or night and in dusty or low visibility conditions
Data sheetDOWNLOAD

Specialised solutions

Discover More Steering System Options.

WM-Subsurface Software

Precision Software

WM-Subsurface Software

WM-Subsurface (formerly known as Farm Works Surface) is farm drainage software that works with the Trimble® WM-Drain™ farm drainage solution. WM-Subsurface ensures the optimal placement of tile and surface drains in both surface and sub-surface drainage water management projects, helping to drain fields adequately and increase crop yields. Easily overlay other layers such as yield or soil types to help visualize the field from different perspectives.

The farm drainage software installs on desktop computers utilizing Microsoft® Windows® 7 or higher.

FEATURES:

  • Automatically calculate recommended pipe sizing
  • Generate estimated project cost and materials required
  • Easily make design adjustments based on vertical profile and set or change direction of water outlet
  • Levee creation from topography data based on contour interval and implement turn radius
  • Utilize tributary lines to assist with following natural surface water flows
  •
Data sheetDOWNLOAD
Previous
Next

Why Choose WM-Subsurface?

The Easiest Water Management Software

Automatic Pipe Sizing:

  • Calculate the recommended pipe size for all pipes within a given design, as well as generate an estimate on total cost and material required for the drainage project.
  • Helps you quickly and efficiently produce optimal drainage designs while reducing your overall costs.

Tributary Lines:

  • Allow your farm drainage softwre to determine the various watershed zones of the field to assist with main, submain and lateral pipe placement.
  • Enable flow arrows and tributary lines to assist with tracing the natural surface water flows

Drainage Lines:

  • Utilise the drawing tools to tie laterals to mains, create parallel lateral spacing and clip drainage lines
  • Layout and design drainage tile by size, pipe type, phase, then enter the minimum depth, maximum depth and optimum grade for each
  • Utilise the design check feature to confirm that all drainage lines flow correctly

Specialised solutions

Discover More Water Management Options.

WM-Drain Farm Drainage Solution

Precision Products

WM-Drain Farm Drainage Solution

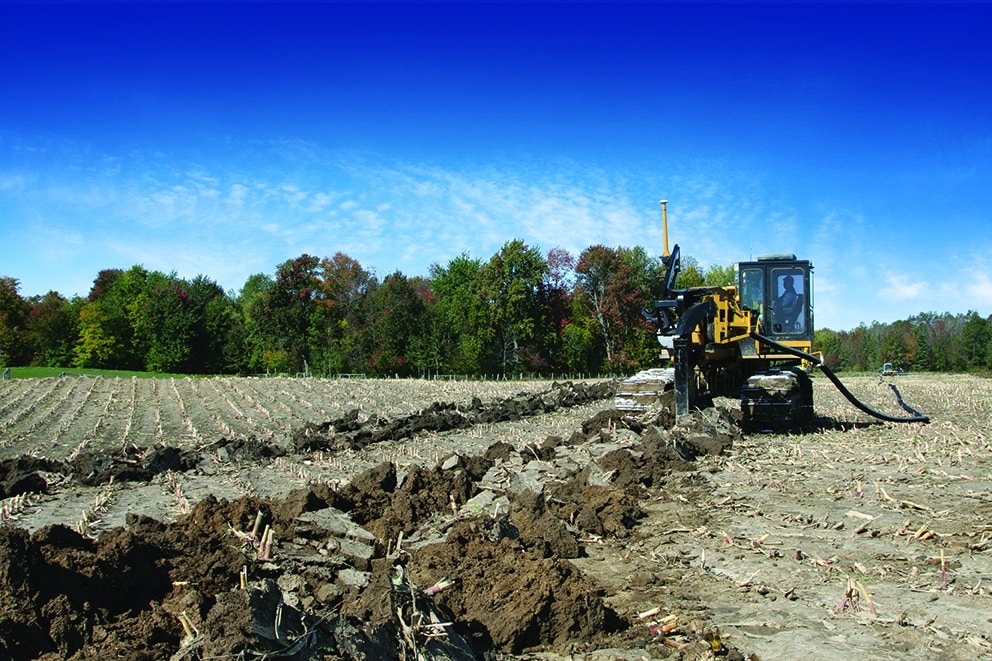

The Trimble® WM-Drain® farm drainage solution is a concept-to-completion toolset that streamlines the survey, analysis, design, installation, and mapping steps of surface and subsurface drainage.

The WM-Drain solution ensures optimal 3D drain placement, which improves crop yields by controlling ponding, optimizing root depth, maximizing planting seasons, and minimizing nutrient loss.

FEATURES:

  • Seamless, integrated solution for survey, analysis, design, installation, and mapping steps of surface and subsurface drainage projects
  • Software for analysis and optimal 3D drainage design
  • On-the-go design capabilities
  • T3™ Enhanced Terrain Compensation Technology for roll-corrected 3D positioning
  • Wireless data transfer between the farm office, vehicles, and workers in the field
Data sheetDOWNLOAD

Benefit from streamlined drainage

  • Complete all your drainage operations with one integrated solution
  • Improve crop yields up to 30%
  • Increase operating efficiency up to 20% compared to laser equipment
  • Maintain a more developed root zone for better nutrient absorption
  • Remove excess water from the field and lower plant stress
  • Reduce field compaction and minimize soil erosion
  • Use with any type of drainage plow — self-propelled, pull-type, chain, or wheel trenchers, ditches, scrapers, or any other water management implement
  • Apply water to only the best producing areas within a field

Specialised solutions

Discover More Water Management Options.

WM-Form Land Forming Solution

Precision Products

WM-Form Land Forming Solution

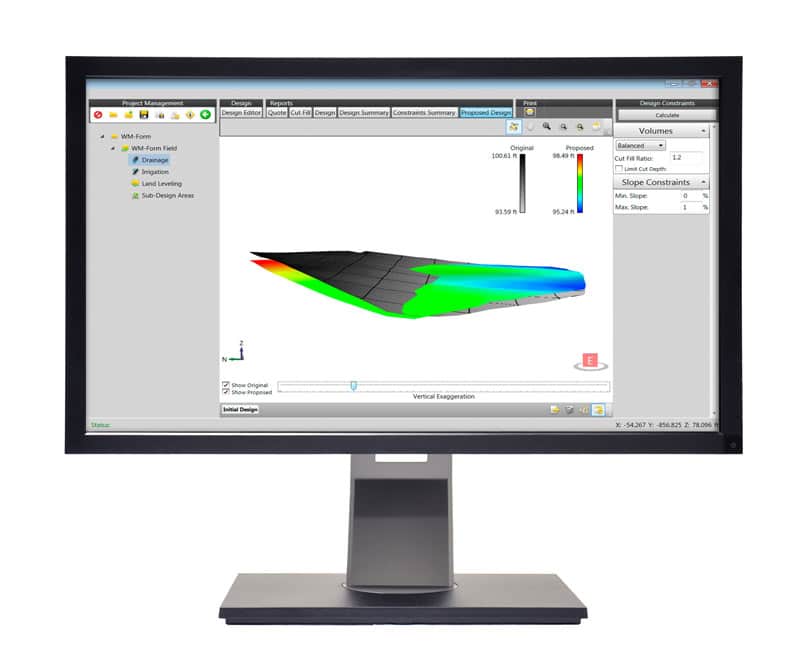

Whether you’re a grower or an earthworks contractor, the Trimble® WM-Form™ land forming solution can help you fix underproducing acres – while also controlling the cost of the earthworks and minimizing disturbance to valuable topsoil.

FEATURES:

  • Level fields with single or multiple planes using a best-fit or custom plane, or with multiple hinges
  • Drain water in any direction or to a linear feature such as a ditch or existing drainage system
  • Create multi-direction variable slope designs to optimize the surface for furrow irrigation
  • Create section lines and design each section individually
  • Generate multiple design variations for the field, then compare them in 3D view against the original topography
  • Produce 2D cut/fill estimates and reports
  •
Data sheetDOWNLOAD

Why Choose WM-FORM?

Optimise Your Hectares

You’ll get problem areas producing in no time, while you:

  • Open up more acres to be farmed
  • Enable optimal water distribution and drainage
  • Minimize disturbance to valuable topsoil
  • Reduce erosion and minimize flooding by effectively channeling water
  • Create more uniform production and increase yield

WM-Form allows you to design variable-shaped fields and topography based on the best use of existing contours, the water needs of individual crops, and even individual farming practices.

As a complete end-to-end workflow, WM-Form allows you to perform field survey, analyze topography, create an optimized design, export earthworks reports and control files, and conduct land forming operations on the machine. The WM-Form software can also be used to generate earthworks volume estimates and produce detailed project bids for contractors.

Why WM-Form

  • Survey – Collect 3D field data with ease with the Trimble WM-TopoTM survey system, FmX Integrated Display or TMX-2050TM Display
  • Analyse – Analyse topographic  data in the WM-Form software for surface problems that limit yield
  • Estimate  – use the new  design to estimate earthworks volumes and generate a project bid
  • Level and Form – grade the new field using the field design as a machine control model with the Trimble Field Level II system
  • Verify and Manage – Map the true contours of  of your new field with Trimble WM-TopoTM  for future maintenance of drainage management projects
